LLM Observability with Elasticsearch APM Service

Connect OpenLLMetry to Elastic APM to visualize LLM traces in Kibana’s native APM interface. This integration uses OpenTelemetry Protocol (OTLP) to route traces from your application through an OpenTelemetry Collector to Elastic APM Server.

This integration requires an OpenTelemetry Collector to route traces between Traceloop OpenLLMetry client and Elastic APM Server. Elastic APM Server 8.x+ supports OTLP natively.

Quick Start

1. Install OpenLLMetry

   Install the Traceloop SDK alongside your LLM provider client:

   pip install traceloop-sdk openai

2. Configure OpenTelemetry Collector

   Configure your OpenTelemetry Collector to receive traces from OpenLLMetry and forward them to APM Server.

   Create an otel-collector-config.yaml file:

   receivers:
     otlp:
       protocols:
         http:
           endpoint: localhost:4318
         grpc:
           endpoint: localhost:4317

   processors:
     batch:
       timeout: 10s
       send_batch_size: 1024

     memory_limiter:
       check_interval: 1s
       limit_mib: 512

     resource:
       attributes:
         - key: service.name
           action: upsert
           value: your-service-name # Match this to app_name parameter value when calling Traceloop.init()

   exporters:
     # Export to APM Server via OTLP
     otlp/apm:
       endpoint: http://localhost:8200 # APM Server Endpoint
       tls:
         insecure: true # Allow insecure connection from OTEL Collector to APM Server (for demo purposes)
       compression: gzip

     # Logging exporter for debugging (can ignore if not needed)
     logging:
       verbosity: normal # This is the verbosity of the logging
       sampling_initial: 5
       sampling_thereafter: 200

     # Debug exporter to verify trace data
     debug:
       verbosity: detailed
       sampling_initial: 10
       sampling_thereafter: 10

   extensions:
     health_check:
       endpoint: localhost:13133 # Endpoint of OpenTelemetry Collector's health check extension

   service:
     extensions: [health_check] # Enable health check extension

     pipelines:
       traces:
         receivers: [otlp]
         processors: [memory_limiter, batch, resource]
         exporters: [otlp/apm, logging, debug]

       metrics:
         receivers: [otlp]
         processors: [memory_limiter, batch, resource]
         exporters: [otlp/apm, logging]

       logs:
         receivers: [otlp]
         processors: [memory_limiter, batch, resource]
         exporters: [otlp/apm, logging]


   In production, enable TLS and use APM Server secret tokens for authentication. Set tls.insecure: false and configure headers: Authorization: Bearer <token>.

3. Initialize Traceloop

   Import and initialize Traceloop before any LLM imports:

   from os import getenv

   from traceloop.sdk import Traceloop
   from openai import OpenAI

   # Initialize Traceloop with OTLP endpoint
   Traceloop.init(
       app_name="your-service-name",
       api_endpoint="http://localhost:4318"
   )

   # Traceloop must be initialized before importing the LLM client
   # Traceloop instruments the OpenAI client automatically
   client = OpenAI(api_key=getenv("OPENAI_API_KEY"))

   # Make LLM calls - automatically traced
   response = client.chat.completions.create(
       model="gpt-4o-mini",
       messages=[{"role": "user", "content": "Hello!"}]
   )


   The app_name parameter sets the service name visible in Kibana APM’s service list.

4. View Traces in Kibana

   Navigate to Kibana’s APM interface:

   1. Open Kibana at http://localhost:5601
   2. Go to Observability → APM → Services
   3. Click on your service name (e.g., your-service-name)
   4. View transactions and trace timelines with full LLM metadata

   Each LLM call appears as a span containing:

   • Model name (gen_ai.request.model)
   • Token usage (gen_ai.usage.input_tokens, gen_ai.usage.output_tokens)
   • Prompts and completions (configurable)
   • Request duration and latency

Environment Variables

Configure OpenLLMetry behavior using environment variables:

Variable	Description	Default
TRACELOOP_BASE_URL	OpenTelemetry Collector endpoint	http://localhost:4318
TRACELOOP_TRACE_CONTENT	Capture prompts/completions	true

Set TRACELOOP_TRACE_CONTENT=false in production to prevent logging sensitive prompt content.

Using Workflow Decorators

For complex applications with multiple steps, use workflow decorators to create hierarchical traces:

from os import getenv
from traceloop.sdk import Traceloop
from traceloop.sdk.decorators import workflow, task
from openai import OpenAI

Traceloop.init(
  app_name="recipe-service",
  api_endpoint="http://localhost:4318",
)

# Traceloop must be initialized before importing the LLM client
# Traceloop instruments the OpenAI client automatically
client = OpenAI(api_key=getenv("OPENAI_API_KEY"))

@task(name="generate_recipe")
def generate_recipe(dish: str):
    """LLM call - creates a child span"""
    response = client.chat.completions.create(
        model="gpt-4o-mini",
        messages=[
            {"role": "system", "content": "You are a chef."},
            {"role": "user", "content": f"Recipe for {dish}"}
        ]
    )
    return response.choices[0].message.content


@workflow(name="recipe_workflow")
def create_recipe(dish: str, servings: int):
    """Parent workflow - creates the root transaction"""
    recipe = generate_recipe(dish)
    return {"recipe": recipe, "servings": servings}

# Call the workflow
result = create_recipe("pasta carbonara", 4)

In Kibana APM, you’ll see:

• recipe_workflow.workflow as the parent transaction
• generate_recipe.task as a child span
• openai.chat.completions as the LLM API span with full metadata

Example Trace Visualization

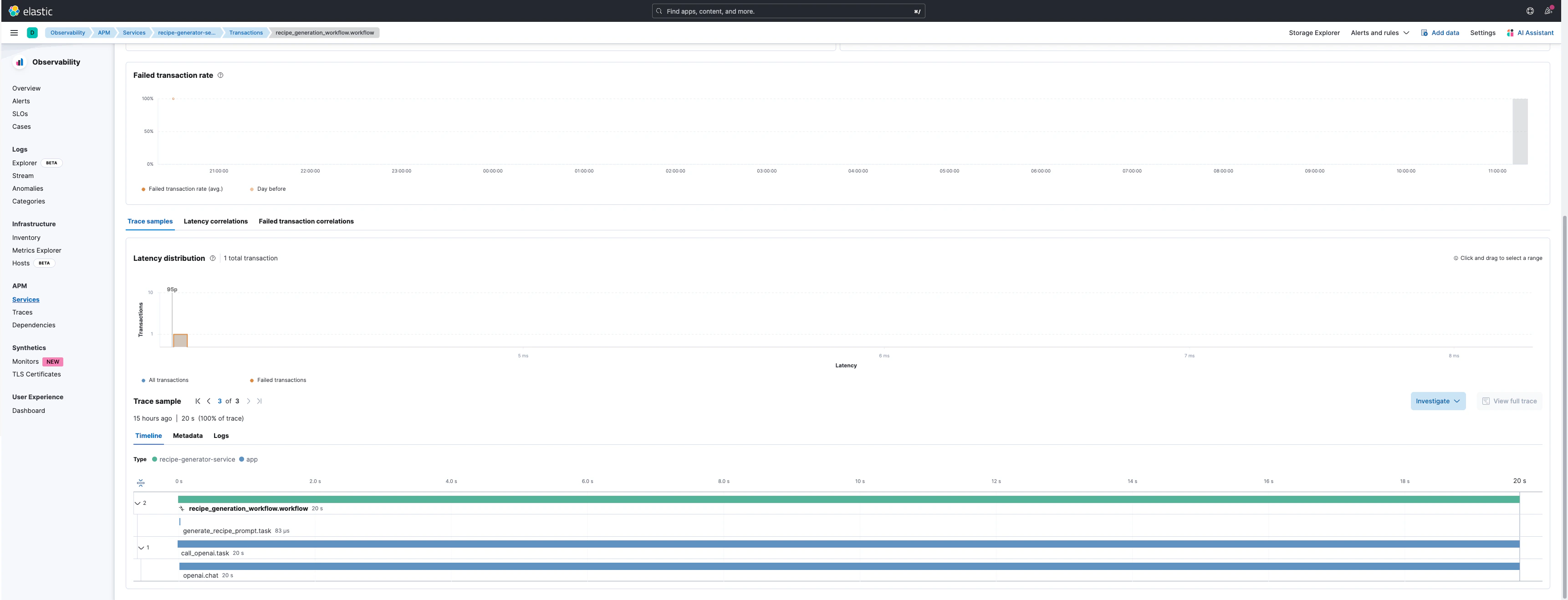

Trace View

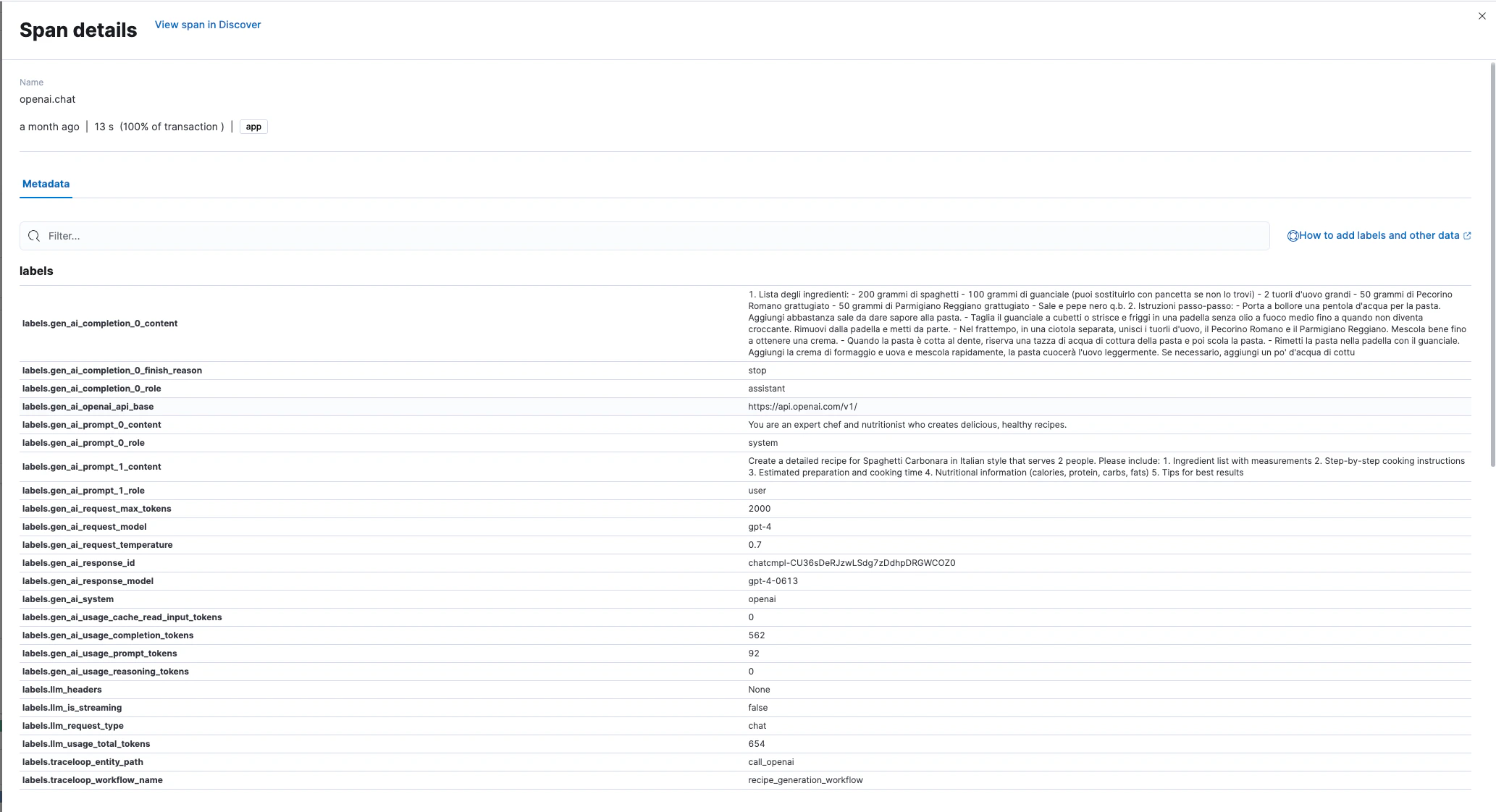

Trace Details

Captured Metadata

OpenLLMetry automatically captures these attributes in each LLM span:

Request Attributes:

• gen_ai.request.model - Model identifier
• gen_ai.request.temperature - Sampling temperature
• gen_ai.system - Provider name (OpenAI, Anthropic, etc.)

Response Attributes:

• gen_ai.response.model - Actual model used
• gen_ai.response.id - Unique response identifier
• gen_ai.response.finish_reason - Completion reason

Token Usage:

• gen_ai.usage.input_tokens - Input token count
• gen_ai.usage.output_tokens - Output token count
• llm.usage.total_tokens - Total tokens

Content (if enabled):

• gen_ai.prompt.{N}.content - Prompt messages
• gen_ai.completion.{N}.content - Generated completions

Production Considerations

Content Logging

Disable prompt/completion logging in production:

export TRACELOOP_TRACE_CONTENT=false

This prevents sensitive data from being stored in Elasticsearch.

Sampling

Configure sampling in the OpenTelemetry Collector to reduce trace volume:

processors:
  probabilistic_sampler:
    sampling_percentage: 10  # Sample 10% of traces

Security

Enable APM Server authentication:

exporters:
  otlp/apm:
    endpoint: https://localhost:8200
    headers:
      Authorization: "Bearer <secret-token>"
    tls:
      insecure: false
